Understanding Camera Image Sensors and the Evolution of Photography
Photography has significantly evolved over the centuries, especially with the advent of digital sensors. These technological innovations have transformed how we capture, store, and process images. In this blog, we will delve into the different types of image sensors used in modern cameras and explore how photography was done before the digital era, giving a comprehensive view of both the technical aspects and the history of the craft.
What Are Image Sensors?
An image sensor is a crucial component inside digital cameras that captures light from a scene and converts it into an electrical signal. This signal is then processed to create a digital image. Essentially, the sensor serves as the "eye" of the camera, allowing it to capture moments in time. There are two main types of image sensors: CCD (Charge-Coupled Device) and CMOS (Complementary Metal-Oxide-Semiconductor), each with its own advantages and drawbacks.
CCD (Charge-Coupled Device) Sensor
A CCD sensor works by gathering light and converting it into electrical charges. The charges are then transferred sequentially to produce an image. This type of sensor was traditionally used in professional cameras because of its high-quality images, especially in low-light conditions.
Advantages:
High Image Quality: CCD sensors are known for their excellent color depth and low noise, which results in sharp, detailed images.
Uniformity: Since the charges are transferred across the sensor evenly, there’s less variation in each pixel’s response.
Disadvantages:
Power Consumption: CCD sensors require more power, which can lead to shorter battery life in cameras.
Cost: They are more expensive to produce than CMOS sensors, making cameras equipped with CCDs pricier.
Slower Processing: CCD sensors tend to have slower readout speeds, making them less ideal for high-speed applications like video recording.
CMOS (Complementary Metal-Oxide-Semiconductor) Sensor
CMOS sensors, on the other hand, incorporate circuitry into each individual pixel, enabling faster readout and more efficient processing. Over time, CMOS sensors have improved significantly in image quality, and today, they are the most common type of sensor found in consumer and professional cameras alike.
Advantages:
Faster Processing: CMOS sensors allow for faster data processing, making them ideal for high-speed photography and video recording.
Lower Power Consumption: They consume less power than CCD sensors, leading to longer battery life in digital cameras.
Cost-Effective: CMOS sensors are cheaper to produce, which translates to more affordable cameras.
Disadvantages:
Noise Issues (in earlier models): Early CMOS sensors often produced more noise, especially in low-light conditions. However, advancements in technology have significantly mitigated this issue.

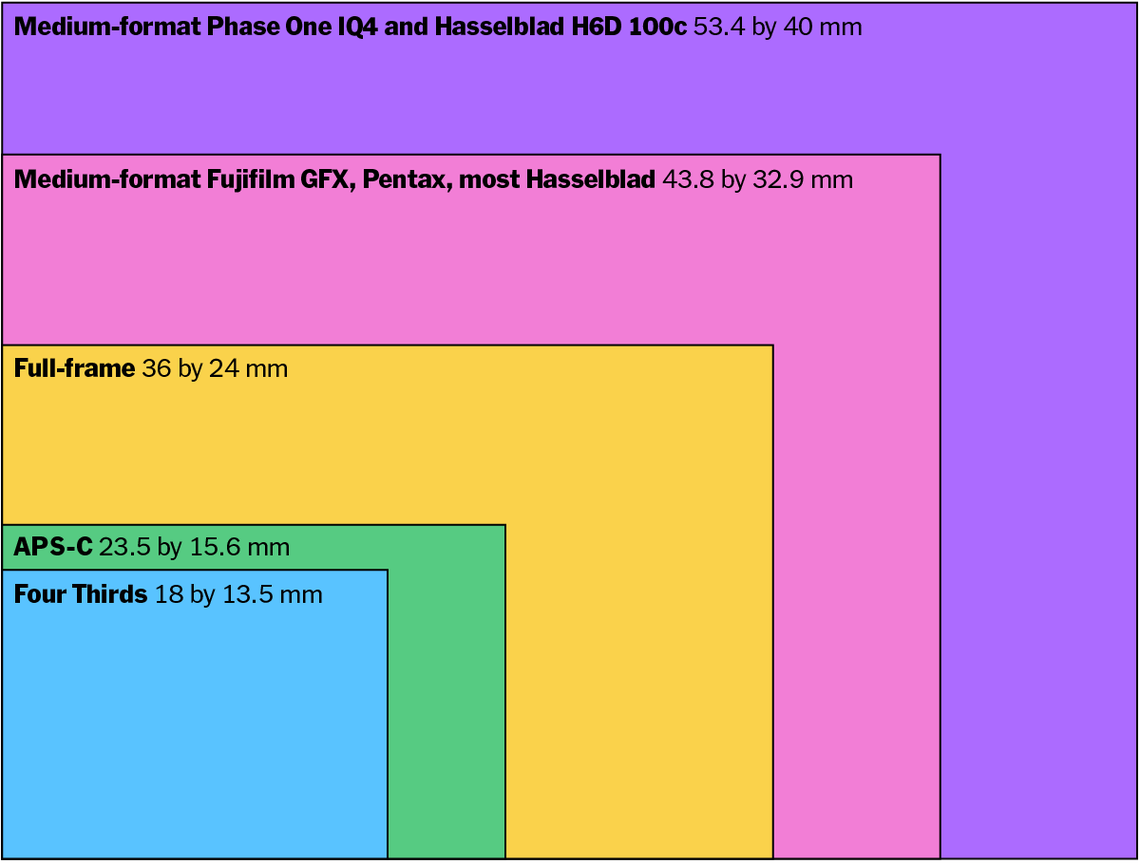

Types of Image Sensors: A Comparison
Here’s a comparison of some of the most common image sensors based on their size and ideal applications:
Full-Frame Sensors: These are the largest image sensors and offer superior image quality, especially in low-light situations. They are often found in high-end professional cameras and are used for portrait, landscape, and commercial photography.
APS-C Sensors: APS-C sensors are smaller than full-frame sensors but still provide excellent image quality. They are commonly used in enthusiast and mid-range cameras.
Micro Four Thirds Sensors: These sensors are smaller than APS-C sensors and are commonly found in compact mirrorless cameras. While they might not perform as well in low-light conditions, their smaller size makes them ideal for travel and vlogging.
Medium Format Sensors: With much larger dimensions than full-frame sensors, medium format sensors deliver incredible detail and dynamic range. They are typically found in the most expensive studio and commercial cameras used for high-end photography.
Specialty Sensors: Some cameras feature unique sensors, like the Foveon X3, which captures RGB at every pixel instead of using a traditional color filter array. These sensors are more specialized and used for niche photography applications.
Photography Before Image Sensors: A Glimpse Into the Past
Long before digital sensors, photography was a manual and chemical process. The development of photography can be traced back to various methods, each of which built on previous technologies.
1. Camera Obscura (Pre-18th Century)
The camera obscura was a simple device that predated photography. It consisted of a dark room or box with a small hole (pinhole) on one side. Light would pass through the hole and project an inverted image of the outside scene onto a surface inside the box. While the camera obscura could not record images, it was an important tool for artists, allowing them to trace detailed images.
2. Daguerreotypes (1839)
The daguerreotype was the first commercially successful photographic process, introduced by Louis Daguerre in 1839. This process involved exposing a copper plate coated with silver iodide to light. The result was a highly detailed, one-of-a-kind image. Although the daguerreotype process was widely used, the images could not be reproduced, limiting its use.
3. Calotypes (1841)
The calotype process, invented by William Henry Fox Talbot in 1841, was the first method that allowed for the reproduction of images. It involved exposing paper coated with silver chloride to light. Unlike daguerreotypes, calotypes produced negative images, which could then be used to produce multiple positive prints. This was a key development that paved the way for modern photography.
4. Wet Collodion Process (1850s)
The wet collodion process involved coating glass plates with a wet solution of collodion, exposing them to light, and then developing them immediately. This process allowed photographers to capture sharper, more detailed images than previous methods. It also enabled the creation of photographic negatives that could be used to produce multiple positive prints.
5. Dry Plate Photography (1870s)
In the 1870s, dry plate photography became popular. It replaced the wet collodion process with glass plates coated with a gelatin-based emulsion that could be stored and developed later. This innovation made photography more convenient, as photographers no longer had to develop their images immediately after exposure.
6. Film Photography (1880s - Late 20th Century)
With the invention of film photography in the 1880s, the medium became accessible to the general public. Flexible rolls of film were coated with light-sensitive emulsion, which was exposed to light inside a camera and then chemically developed. Film photography remained the dominant method of capturing images for much of the 20th century, with advancements leading to higher-quality images and faster film speeds.
The Rise of Digital Sensors and Modern Photography
The transition from film to digital sensors in the late 20th and early 21st centuries marked the beginning of a new era in photography. The first professional digital cameras used CCD sensors, which were capable of converting light into electronic signals. These sensors allowed photographers to view their images immediately, a huge advantage over film.
Over time, CMOS sensors gained popularity due to their lower cost and better power efficiency. As technology continued to improve, digital sensors became smaller, faster, and more efficient, allowing for more affordable and accessible cameras. Today, digital sensors have revolutionized the way we capture and store images, leading to the proliferation of high-quality digital photography in both consumer and professional markets.
Conclusion
The development of image sensors has played a crucial role in the evolution of photography. From the early chemical processes to the digital era, advancements in sensor technology have allowed photographers to capture moments in time with greater accuracy and detail. Understanding the differences between the types of sensors and their respective advantages helps photographers choose the right equipment for their needs, whether they're pursuing professional work or hobbyist photography. As technology continues to advance, the future of digital photography promises even greater innovations.
